Example usage of the NetworkGenerator class

[3]:

# for interactive plots
%matplotlib inline

from pydistsim.logging import set_log_level, enable_logger
from pydistsim.network.generator import NetworkGenerator

[4]:

set_log_level("INFO")
enable_logger()

[5]:

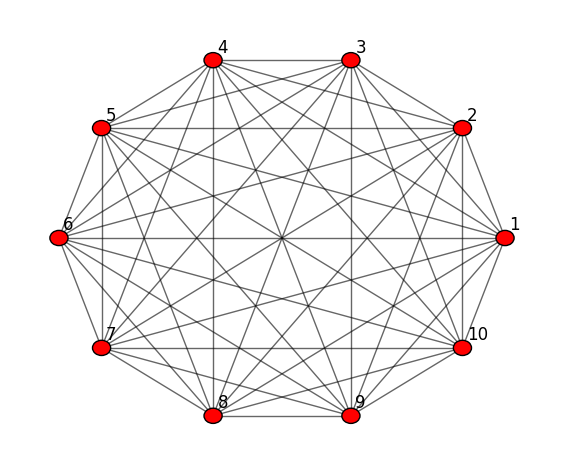

net = NetworkGenerator.generate_complete_network(10)  # Generate a complete network with 10 nodes
net.show()

/mnt/d/Proyectos/pymote/docs/notebooks/../../pydistsim/network/network.py:560: UserWarning: FigureCanvasAgg is non-interactive, and thus cannot be shown
  fig.show()

[5]:

../_images/notebooks_network_generators_3_1.png

[6]:

net = NetworkGenerator.generate_mesh_network(
    12, 3, 4, torus=False
)  # Generate a mesh network with 12 nodes, 4 rows and 3 columns
net.show()

[6]:

../_images/notebooks_network_generators_4_0.png

[7]:

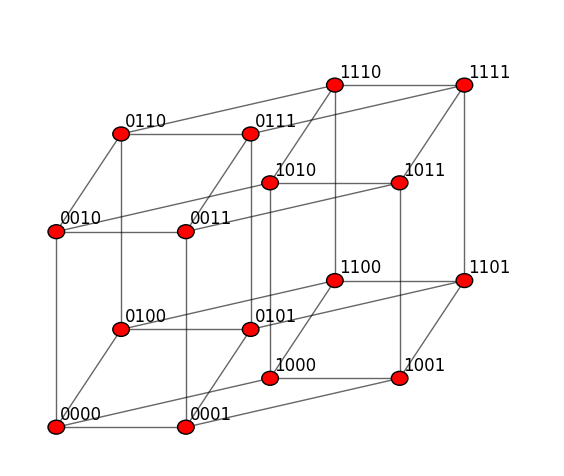

net = NetworkGenerator.generate_hypercube_network(16)  # Generate a hypercube network with 16 nodes
net.show()

[7]:

../_images/notebooks_network_generators_5_0.png

[8]:

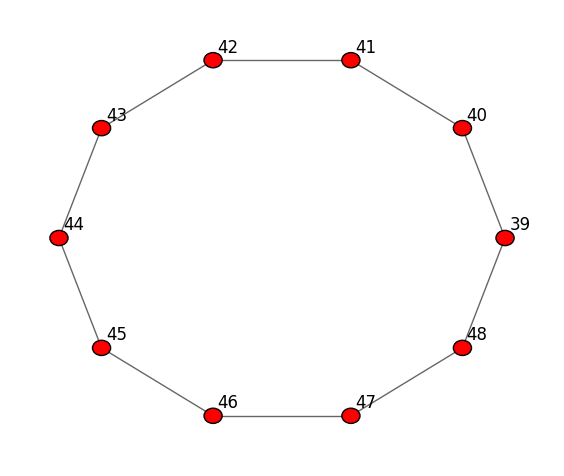

net = NetworkGenerator.generate_ring_network(10)  # Generate a ring network with 10 nodes
net.show()

[8]:

../_images/notebooks_network_generators_6_0.png

[10]:

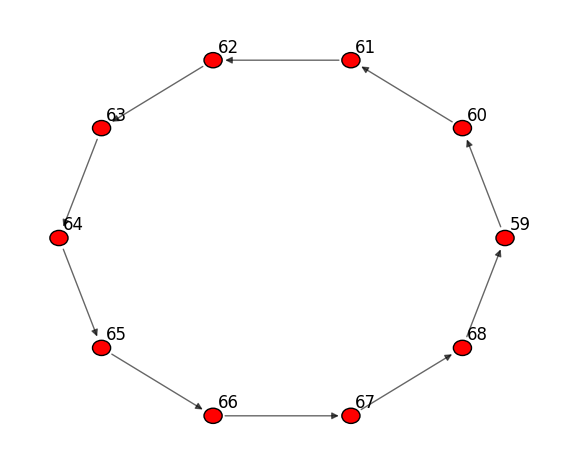

net = NetworkGenerator.generate_ring_network(10, directed_network=True)  # Now directed
net.show()

/mnt/d/Proyectos/pymote/docs/notebooks/../../pydistsim/network/network.py:560: UserWarning: FigureCanvasAgg is non-interactive, and thus cannot be shown
  fig.show()

[10]:

../_images/notebooks_network_generators_7_1.png

[9]:

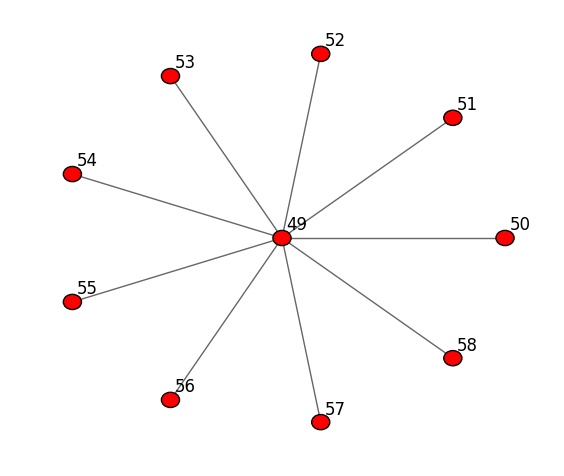

net = NetworkGenerator.generate_star_network(10)  # Generate a star network with 10 nodes
net.show()

[9]:

../_images/notebooks_network_generators_8_0.png

[11]:

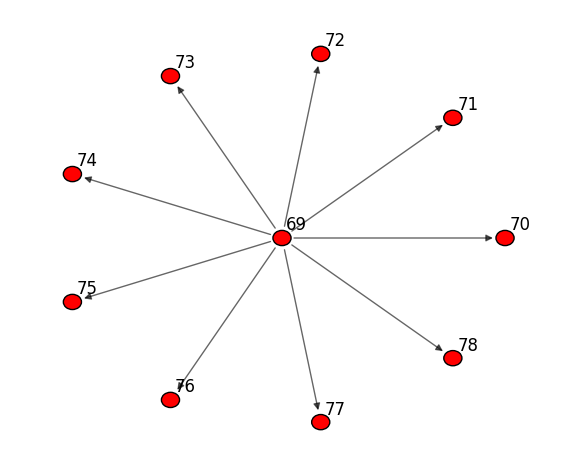

net = NetworkGenerator.generate_star_network(10, directed_network=True)  # Now directed
net.show()

/mnt/d/Proyectos/pymote/docs/notebooks/../../pydistsim/network/network.py:560: UserWarning: FigureCanvasAgg is non-interactive, and thus cannot be shown
  fig.show()

[11]:

../_images/notebooks_network_generators_9_1.png
