Algorithm run animation creator

# for interactive plots
%matplotlib notebook

from pydistsim.network import NetworkGenerator
from pydistsim.demo_algorithms.santoro2007.yoyo import YoYo
from pydistsim.simulation import Simulation
from pydistsim.network.behavior import NetworkBehaviorModel
from pydistsim.gui import drawing as draw

As always, let’s start with network and simulation object creation

net = NetworkGenerator.generate_hypercube_network(8)

# Let's add some random delays to the communication, so we can see it in action
net.behavioral_properties = NetworkBehaviorModel.RandomDelayCommunication


sim = Simulation(net, (YoYo,))

Create a frame with the simulation’s current state

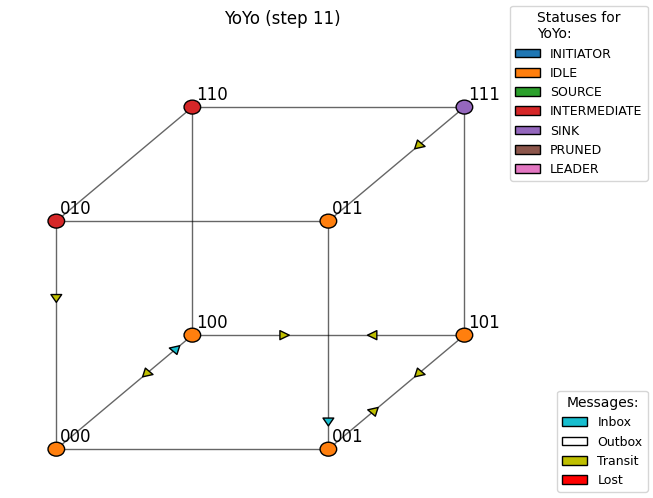

In the following cell, we show how to create a figure with the current state of the simulation. This will show each node’s state and the messages that are currently in transit, lost, delivered, or pending to be sent.

sim.run(10)
fig = draw.draw_current_state(sim)

fig

Keep going and watch the simulation as it runs

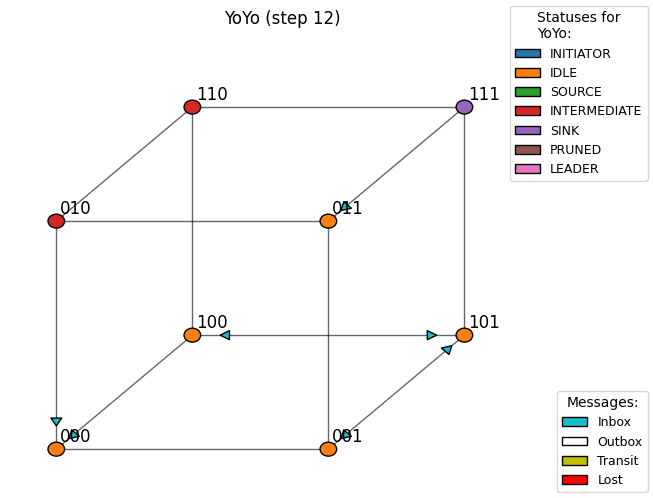

We can run the simulation and update the figure at each step to see how the algorithm works.

sim.run(1)
fig = draw.draw_current_state(sim)

fig

Video creation

The simplest way to understand how the algorithm works is to watch it in action. We can create something like a stop-motion video of the simulation to see how the algorithm evolves over time.

In the following cell, we show how to create a video with the whole simulation process. You should be able to watch the video from the notebook.

from IPython.display import HTML

sim.reset()
anim = draw.create_animation(sim)
video = anim.to_html5_video()

HTML(video)  # Careful! This must be the last line of the cell, otherwise the video will not be displayed.

To save the video, you can use the save method of the Animation class.

This will raise an exception if FFMpeg is not installed.

Learn more about animation writers at:

https://matplotlib.org/stable/api/animation_api.html#writer-classes

from matplotlib.animation import FFMpegFileWriter

writer = FFMpegFileWriter()
sim.reset()
anim = draw.create_animation(sim)

anim.save("yoyo.mp4", writer=writer)
